| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Mushroom |
| Application | As per EN 60204-1 and EN 418 |
| Color | Red |
| Current Rating | 5 A |
| Function | E-Stop |
| Head Size | 27 mm Dia. |
| IP Rating | IP65 |
| Mounting Hole Size | 16 mm |
| Mounting Type | Panel Mount |
| Operation | Maintained |
| Series | |
| Type | Push Button |
| Voltage Rating | 250 VAC |
Overview

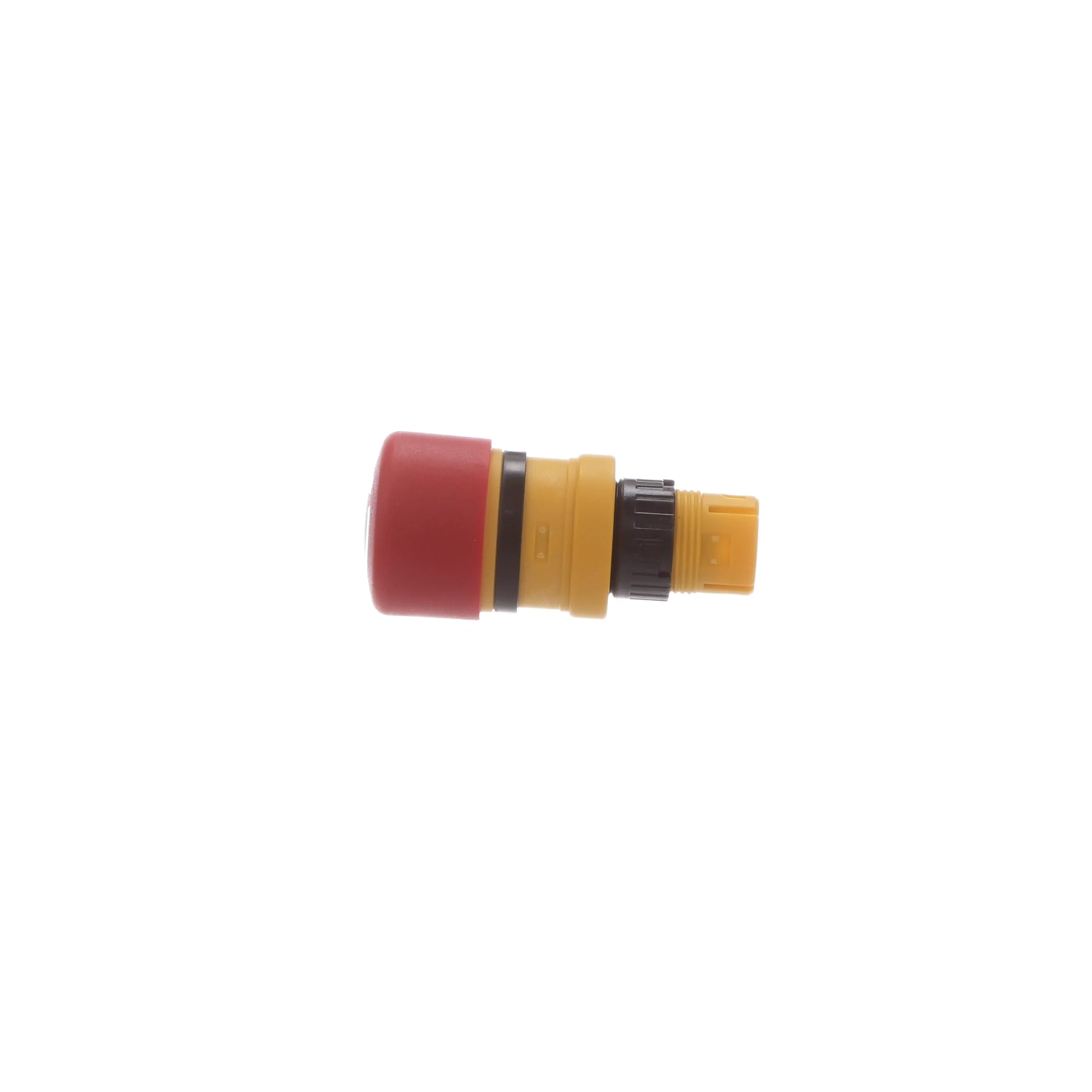

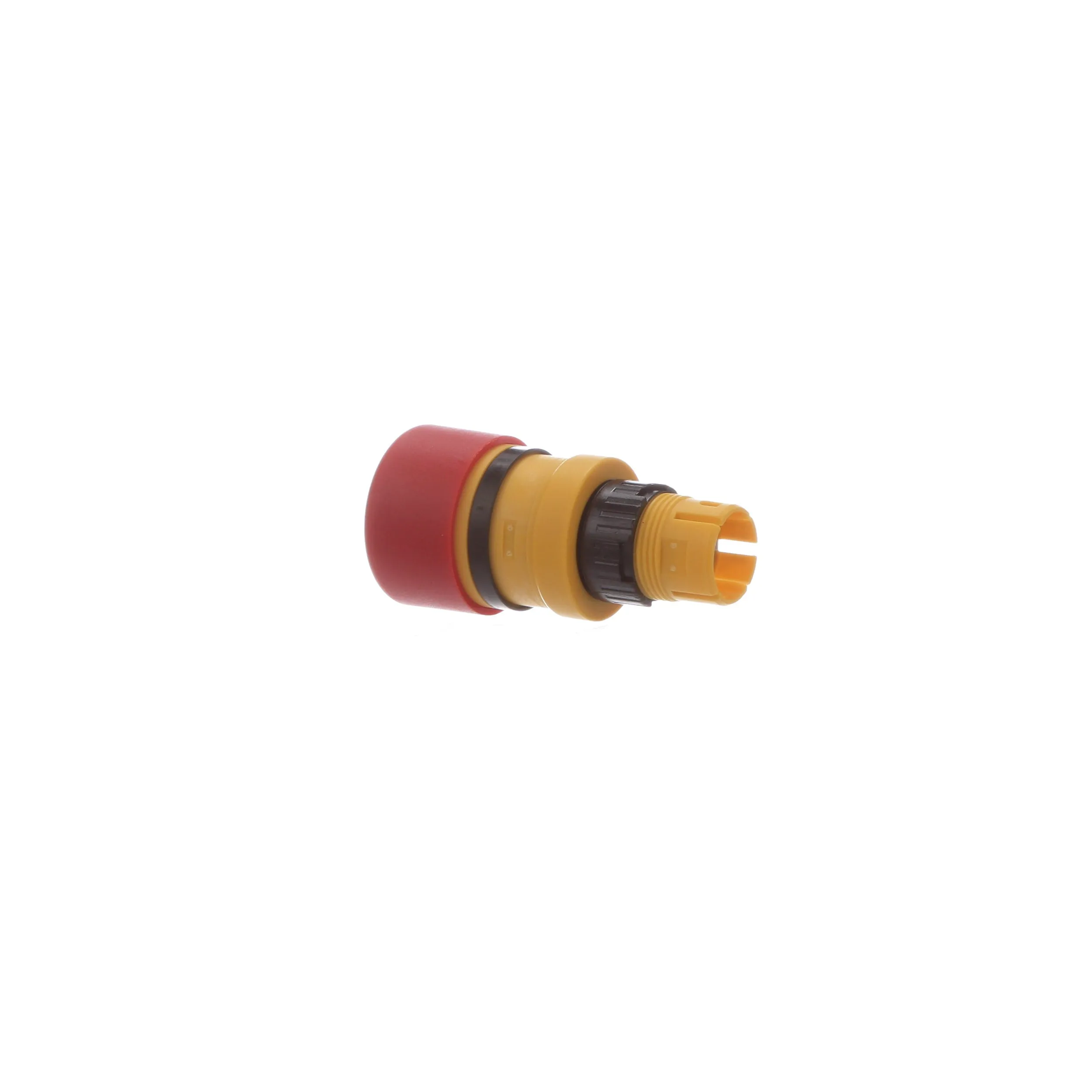

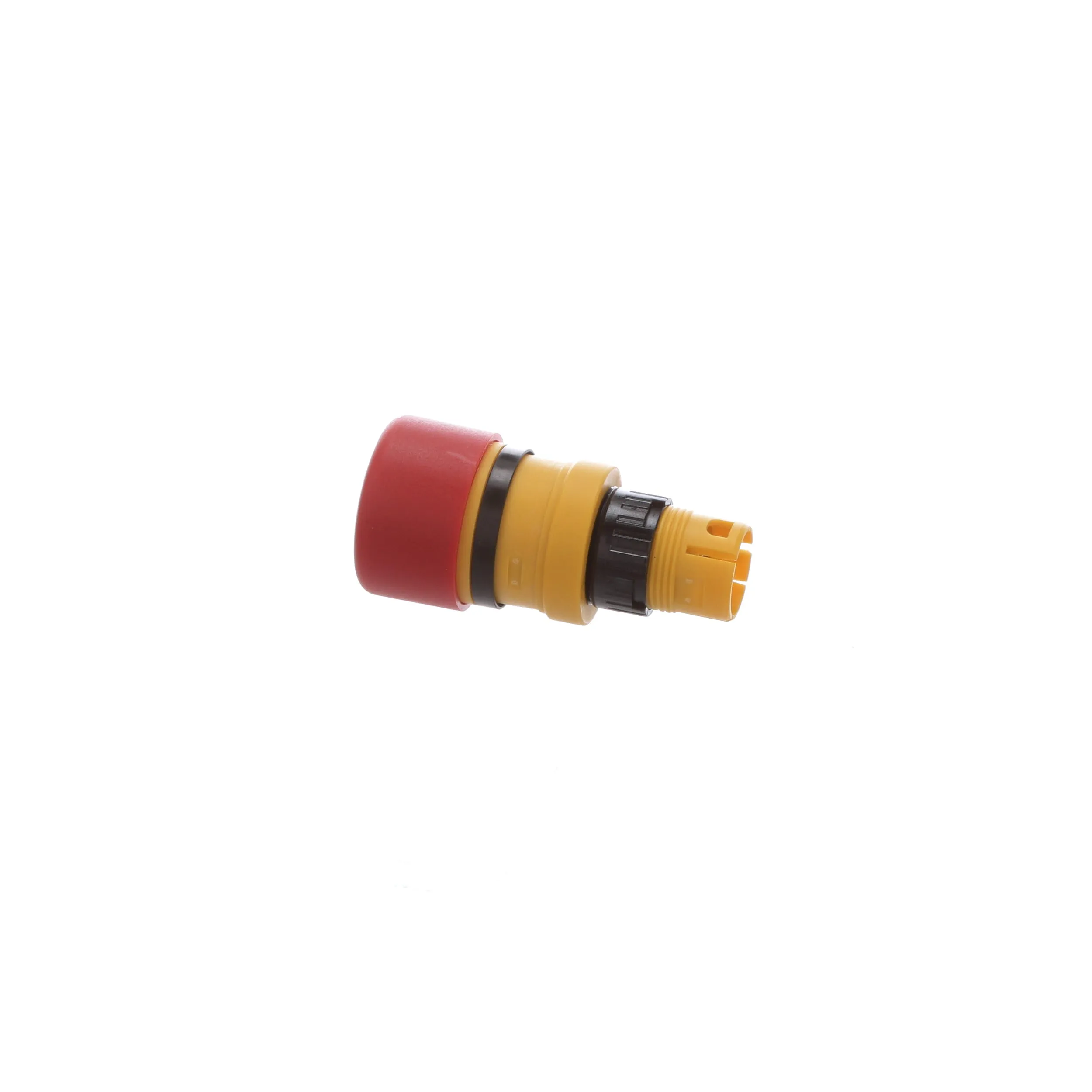

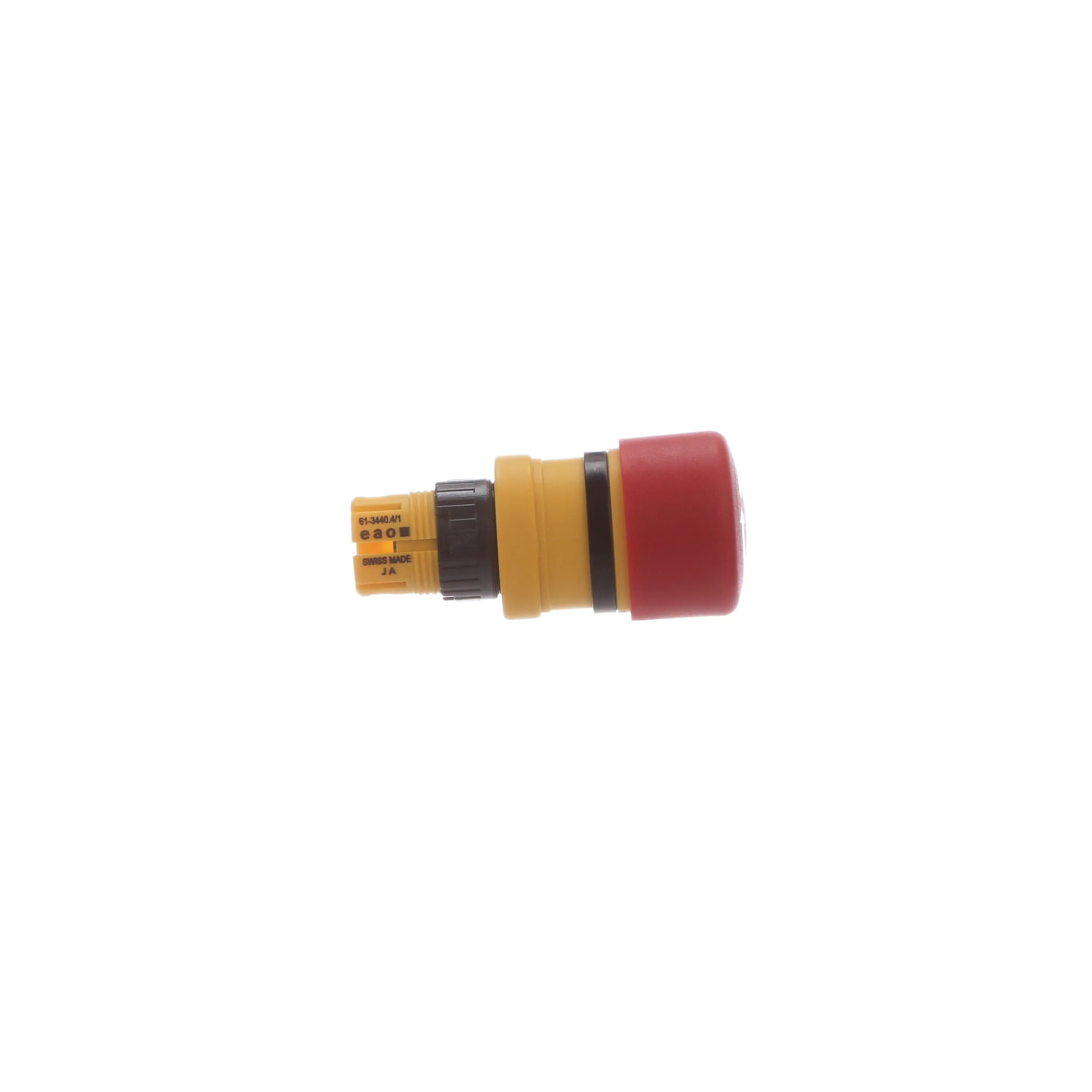

EAO 61 Series E-STOP - Human Machine Interface Emergency Compact & Modular Stop Switches:
The Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stops. Available in raised or flush mount.
NOTE*** This product is incomplete. Additional components may be needed. Use the EAO Online Product Configurator to view necessary components and accessories. Please see the EAO Configurator:
The E-Stop compact satisfies the needs of use through rigorous material selection and a robust build quality that's meets IP69K, the highest degree of protection against dirt and dust ingress. This series also complied with the latest international standards. A green indication ring shows whether the switch is actuated or not. An optional, high brightness, 24VDC central LED makes the product clearly visible, even in low light conditions. Each switch can have up to three individual NO or NC switch contacts, a 27mm or 40mm diameter lens. They are also resistant to most cleaning agents and UV radiation.
Series Features:
Applications:
